Which Pattern Of Stainless Steel Checkered Plate Is Best For Flooring?

Selecting floor plating is rarely just an aesthetic choice. Instead, you must approach it as a critical risk-management decision. Choosing the wrong pattern drastically increases slip-and-fall liabilities. It impedes fast-moving wheeled traffic. It also creates serious sanitation bottlenecks in washdown environments. Today, the stainless steel checkered plate serves as the reliable industry standard. Facilities universally rely it for durable, corrosion-resistant flooring. You will find it across rugged industrial plants, commercial kitchens, and heavy-traffic public spaces. However, simply buying any textured metal guarantees nothing. You must precisely match the plate geometry to your daily operations. This article provides a strictly objective, compliance-aware framework. We will explore slip resistance, drainage needs, and material grades. Ultimately, we will help you evaluate exactly which pattern aligns perfectly with your specific operational flooring requirements.

Key Takeaways

• Application Dictates Geometry: 1-bar (diamond) patterns prioritize aggressive unidirectional traction, while 5-bar patterns offer superior multi-directional slip resistance and load distribution.

• Sanitation vs. Grip Trade-off: Highly aggressive patterns can trap debris and moisture; food-grade and medical environments require patterns (like tear drop or coin) that balance grip with washdown efficiency.

• System Integrity Matters as Much as Pattern: Selecting the right pattern fails if structural integration (subfloor matching, beam attachment, and grade selection like 304 vs. 316) is ignored.

Framing the Decision: Success Criteria for Industrial Flooring

You must establish clear baseline requirements first. Buyers often rush to pick a pattern visually. This approach creates systemic failures. You must define operational parameters before evaluating specific geometric options.

Slip Resistance Standards (Compliance)

You must meet local safety standards consistently. Regulatory bodies outline strict friction guidelines. OSHA guidelines mandate secure, non-slip footing in all industrial zones. Many European frameworks use the R-scale slip rating system. Dynamic friction determines how a floor behaves under movement. The height of the raised pattern dictates this friction directly. The distribution of those raised elements also matters. Taller patterns bite into shoe treads aggressively. However, they can create tripping hazards if improperly spaced.

Traffic Types

Your floor will experience specific loads daily. We categorize operational traffic into three primary groups:

1. Pedestrian-only foot traffic: Requires high surface friction. Walkways need aggressive bite to prevent slips in wet conditions.

2. Heavy wheeled loads: Think forklifts and heavy pallet jacks. They require excellent load distribution. Heavy point loads can crush delicate patterns.

3. Light wheeled traffic: Hospital beds, utility trolleys, and tool carts. They need smooth rolling surfaces. Aggressive patterns cause severe equipment vibration.

Drainage and Maintenance

Cleaning reality often dictates your final pattern choice. A floor requires effective, rapid sanitation. Water must flow freely to floor drains. If water pools, the floor becomes a biological hazard. Spilled oils create dangerous chemical hazards. You must evaluate how easily a mop or pressure washer cleans the surface.

Best Practice: Always align your drainage slope calculations with the orientation of the plate pattern to ensure unimpeded fluid runoff.

Evaluating Core Patterns of Stainless Steel Checkered Plate

We must break down specific geometrical options objectively. Each pattern offers distinct mechanical advantages. They also present unique operational limitations. You must weigh these factors carefully.

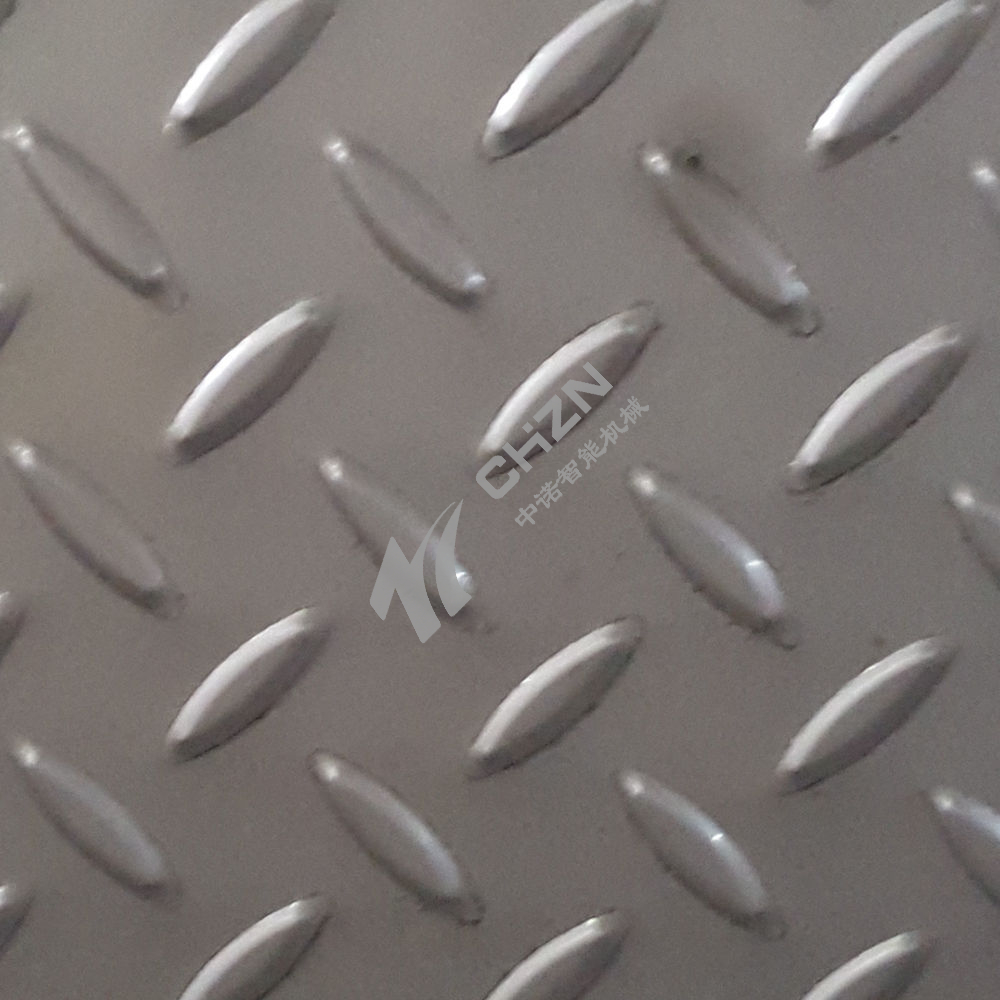

1-Bar / Diamond Pattern

This geometry features a single raised diamond shape. The diamonds alternate in perpendicular directions across the surface.

• Pros: It delivers highly aggressive grip. It works exceptionally well for inclined ramps. It secures straight-line pedestrian walkways flawlessly.

• Cons: It causes intense vibration for small-wheeled carts. The sharp intersection points trap dirt easily. Facility teams find it much harder to clean thoroughly.

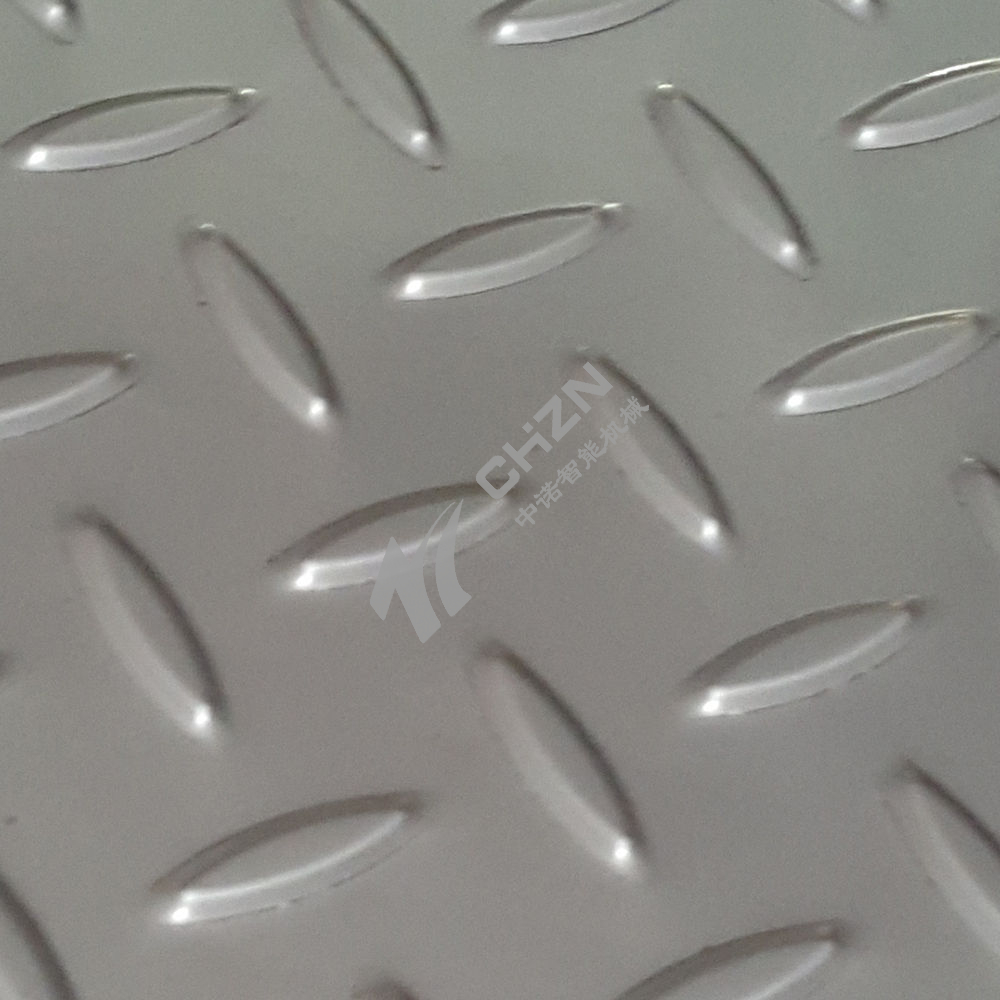

Tear Drop / Lentil Pattern

This pattern uses a rounded, elongated oval shape. The edges taper down smoothly.

• Pros: It provides a smooth transition for rolling carts. Trolleys glide over it effortlessly. It offers excellent liquid drainage. Designers often use it for visible commercial spaces.

• Cons: It provides slightly lower maximum traction. Heavy oil or grease environments might require more surface bite.

5-Bar (Quintet) Pattern

This design features blocks of five parallel bars. The blocks alternate in a rigid checkerboard layout.

• Pros: It provides optimal multi-directional slip resistance. The overlapping pattern distributes heavy point-loads effectively. Forklifts navigate this surface safely.

• Cons: It involves higher manufacturing complexity. Installation requires tighter tolerances. Pattern matching along seams demands highly skilled labor.

Round / Coin Pattern

This style utilizes raised flat circular discs spread evenly across the base metal.

• Pros: It delivers maximum hygiene. The design features no sharp corners. Bacteria and dirt cannot accumulate easily. Washdowns happen quickly and effectively.

• Cons: It offers lower absolute slip resistance. It remains strictly suitable for flat areas. Food processing plants and cleanrooms use it extensively.

Technical Specification Comparison Table

The Environment Factor: When Pattern Meets Material Grade

Pattern alone does not guarantee performance. The base metallurgy must survive the ambient environment. If the metal fails, the pattern degrades rapidly. You must select the correct alloy grade. The stainless steel checkered plate comes primarily in two essential grades.

Grade 304

This serves as the industry baseline standard. It suits general indoor applications perfectly. You will use it for low-exposure commercial flooring. Common locations include commercial garages, dry warehouses, and retail stairs. It provides solid oxidation resistance. However, it struggles in highly corrosive atmospheres.

Grade 316

This represents the mandatory choice for high-corrosion zones. Chemical plants demand this specific alloy. Marine environments require its enhanced resistance. Food processing areas expose floors to harsh chloride cleaning agents daily. Grade 316 contains molybdenum. This element specifically fights chloride attacks.

Why does this matter for surface patterns? Corrosive elements cause pitting. Pitting corrosion aggressively degrades the raised pattern over time. It eats away the textured edges. Eventually, this neutralizes the slip resistance completely. A degraded floor creates severe safety liabilities.

Common Mistake: Specifying Grade 304 in a seafood processing plant. The saline environment and heavy chemical washdowns will erode the raised traction nodes, rendering the floor dangerously slick within months.

Implementation Realities and Installation Risks

You must address specific engineering realities to build trustworthy systems. Procurement and project engineers understand these installation risks deeply. Poor implementation ruins excellent materials.

Structural Support (HSS Beams vs. Subfloors)

You must choose between overlaying and structural spanning. Laying a stainless steel checkered plate over existing concrete requires specific methods. Installers use thinner gauges. They apply strong industrial adhesives. They often secure perimeters using countersunk screws. Structural flooring over HSS (Hollow Structural Section) beams acts differently. Here, the plate supports the entire dynamic load. It requires strictly calculated load-bearing thickness. You cannot guess the required gauge safely.

Fastening Methods

Engineers consistently compare plug welding versus mechanical fastening. Plug welding provides the strongest permanent bond. Installers drill holes and weld the plate directly to the substructure. However, welding risks severe warping. Thermal expansion distorts thin plates easily. Mechanical fastening uses heavy-duty bolting instead. It prevents heat distortion entirely. It also allows for future plate replacement.

Pattern Alignment & Seaming

Mismatched seams create aesthetic disasters. More importantly, they present functional risks. Poor alignment creates dangerous trip hazards. Uneven seams break continuous drainage channels. Water pools at bad joints. Welders must match patterns precisely during installation.

Shortlisting Logic: How to Make Your Final Selection

Buyers need actionable shortlisting logic. We provide a rapid decision matrix below. Review these recommendations carefully. Match them to your primary facility activities.

Pattern Selection Matrix

Next Steps

• Request physical sample plates from your supplier immediately.

• Test these samples against your specific wheeled equipment on-site.

• Roll your heaviest carts over the plates to check for vibration issues.

• Verify material test reports (MTRs) before authorizing bulk orders.

Conclusion

• Summary: Finding the ideal floor geometry requires careful balance. The absolute best pattern combines traffic handling, hygiene demands, and strict structural needs perfectly.

• Risk Warning: Do not compromise on gauge thickness or material grade during procurement. Reducing initial specifications causes premature wear. It inevitably leads to catastrophic safety failures.

• Call to Action: Contact our specialized engineering and sales team today. We perform precise load-bearing calculations. We handle intricate custom cutting requirements accurately. You can also request a sample box showcasing various stainless steel checkered plate patterns for on-site evaluation.

FAQ

Q: What is the minimum thickness required for a stainless steel checkered plate floor?

A: It depends heavily on the subfloor. Overlay applications over solid concrete can typically use 1.5mm to 3mm gauges. However, unsupported spans like mezzanines or trench covers over HSS beams require much thicker material. They typically demand 4.5mm to 6mm or more, strictly depending on engineering load calculations.

Q: Does the pattern height affect the overall thickness measurement of the plate?

A: We must clarify standard industry measurements. "Thickness" usually refers to the flat base plate excluding the raised pattern entirely. To find the overall profile footprint, you add the base thickness to the specific pattern height.

Q: Which pattern is easiest to clean for a food processing facility?

A: The Round/Coin pattern or a widely spaced Tear Drop pattern remains the easiest to clean. They lack acute geometric angles. Organic matter and bacteria cannot become easily trapped in tight corners.

Q: Can checkered plates be welded directly to structural beams?

A: Yes, installers weld them to beams frequently. However, welders must use proper techniques like stitch welding. Continuous heavy welding causes severe thermal expansion. This heat input can permanently distort or warp the plate.
