How is a beautiful embossed stainless steel sheet produced?

The architectural and industrial design worlds have long been captivated by the marriage of durability and aesthetics. Stainless steel, while naturally sleek, reaches a new level of sophistication when it is transformed into an embossed stainless steel sheet. This material is not merely a piece of metal; it is a canvas where mechanical precision meets creative vision. The process of embossing adds depth, texture, and structural integrity to the steel, making it a preferred choice for high-traffic areas, decorative facades, and luxury interiors.

An embossed stainless steel sheet is produced through a rigorous industrial process known as cold rolling, where the steel sheet is passed between a set of custom-engraved rollers under immense pressure. This mechanical deformation forces the pattern of the rollers onto the surface of the steel, creating a permanent raised or recessed texture. The result is a high-quality that features both visual appeal and enhanced physical properties, such as scratch resistance and improved rigidity.

To truly appreciate the value of these materials, one must understand the journey from a raw, flat coil to a textured masterpiece. This article provides an in-depth technical exploration of the manufacturing phases, the machinery involved, and the specific treatments that ensure every sheet meets the highest standards of the B2B industry. From the initial material selection to the final quality inspection, we will uncover why these sheets are a cornerstone of modern construction and design.

Content Overview

Material Selection and Preparation

The production of a high-quality embossed stainless steel sheet begins with selecting premium raw materials, typically Grade 304 or 316, followed by a thorough cleaning process to remove any surface contaminants.

Before any pattern can be applied, the foundation must be flawless. Manufacturers typically select 304-grade stainless steel for standard interior applications due to its excellent formability and corrosion resistance. For projects in coastal environments or high-salinity areas, 316-grade is preferred. The raw material usually arrives in large coils, which are unrolled and inspected for thickness consistency. Even minor deviations in the initial gauge can lead to uneven pattern depth during the embossing phase.

Preparation also involves chemical degreasing. The surface of the steel must be free of oils, dust, or oxidation that might interfere with the rollers. If the final product requires a specific base sheen, the material may undergo a preliminary polishing process, such as No. 4 brush or hairline finish. This ensures that when the premium embossed stainless steel sheet is finally pressed, the light reflects off the textured peaks and valleys with maximum clarity.

Furthermore, the mechanical properties of the steel are verified. The material must possess the right level of ductility to allow for permanent deformation without cracking. Metallurgical testing ensures that the grain structure of the steel can withstand the localized stresses of the embossing rollers, maintaining the alloy's structural integrity throughout its lifecycle.

The Core Embossing Process

The embossing process is a mechanical cold-rolling operation where the stainless steel sheet passes through a pair of rollers, with at least one roller featuring a laser-engraved pattern that is pressed into the metal surface.

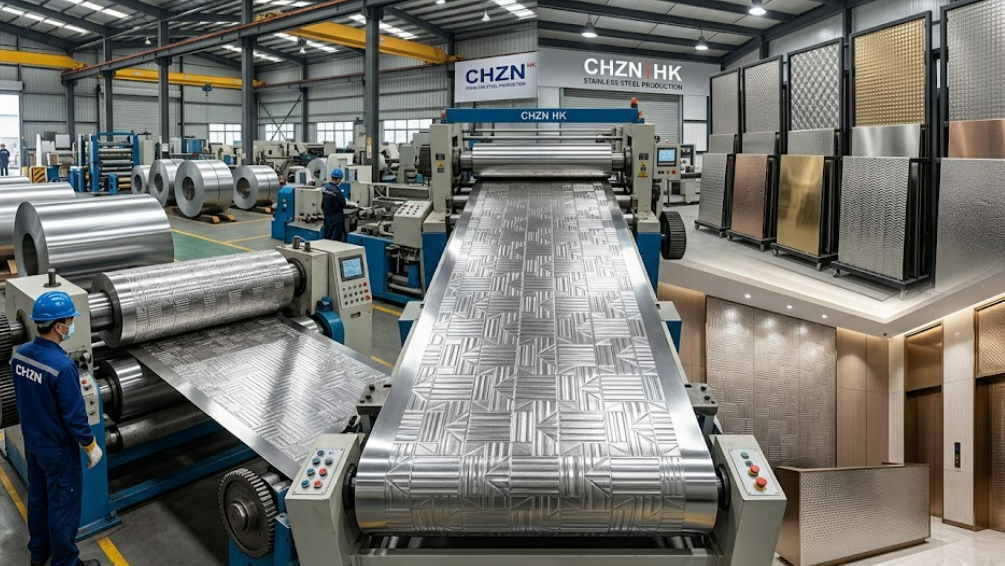

At the heart of the production line is the embossing mill. Unlike stamping, which might work on individual sheets, embossing is often a continuous process. The steel coil is fed through high-pressure rollers. In many "single-sided" embossing setups, the top roller carries the design (such as linen, leather, or wood grain), while the bottom roller is smooth. Under extreme hydraulic pressure, the steel is forced to conform to the voids in the patterned roller.

This process is technically classified as cold working. As the metal is compressed and reshaped, its molecular structure becomes more compact, which actually increases the surface hardness of the sheet. This makes the durable embossed stainless steel sheet much more resistant to dents and scratches compared to its flat counterparts. The precision of the roller engraving is paramount; any imperfection in the master roller will be repeated every few feet on the steel.

The speed of the rolling mill must be carefully synchronized with the pressure settings. If the pressure is too low, the pattern will appear "soft" or blurred. If it is too high, the steel may become brittle or suffer from "oil canning"—a wavy distortion in the flat areas of the sheet. Advanced CNC-controlled mills allow for real-time adjustments to ensure that the pattern depth remains consistent across thousands of meters of material.

Surface Finishes and PVD Coating

After the pattern is embossed, the sheets often undergo secondary treatments like PVD (Physical Vapor Deposition) coating or specialized polishing to add color and further enhance the visual depth of the design.

Once the texture is established, the aesthetic possibilities expand through color. PVD coating is a vacuum deposition method where a solid material is vaporized and deposited atom-by-atom onto the surface of the steel. This creates a thin, incredibly hard layer that provides colors like gold, rose gold, black, or champagne. Because the layer is so thin, it does not fill in the embossed pattern but rather accentuates it, making the high points catch the light while the valleys remain in shadow.

Beyond coloring, many manufacturers apply a "bead blasted" or "vibration" finish over the embossed pattern. This creates a multi-layered visual effect. For example, a "linen" embossed pattern might be treated with a mirror polish on the raised areas and a matte finish in the recesses. This contrast is what gives the decorative embossed stainless steel sheet its luxury appeal, often seen in high-end hotel lobbies and elevator interiors.

The final step in surface treatment is often the application of an anti-fingerprint (AFP) coating. This nano-coating fills the microscopic pores of the metal, preventing oils from human skin from sticking to the surface. For embossed sheets used in public spaces, this is a critical functional upgrade, as the texture itself can sometimes be harder to clean with traditional wiping methods than a flat surface.

Technical Specifications and Patterns

Manufacturers offer a wide array of standardized and custom patterns, ranging from traditional "linen" and "checkered" designs to modern "water ripple" and "leather" textures, available in various gauges.

The variety of patterns is limited only by the technology used to engrave the rollers. Traditional patterns are often geometric, providing a slip-resistant surface for industrial flooring or a professional look for appliances. Modern architectural trends have moved toward organic shapes, such as the popular "water ripple" effect, which mimics the surface of a pond. These patterns are achieved through sophisticated 3D laser engraving on the hardened steel rollers used in the mill.

The thickness of the sheets typically ranges from 0.5mm to 3.0mm. It is important to note that the embossing process adds "apparent thickness" to the sheet. For instance, a 1.0mm flat sheet might have an overall thickness of 1.2mm after a deep pattern is applied. This increased profile contributes to the sheet's stiffness, allowing designers to use thinner (and lighter) gauges while maintaining the structural strength of a thicker flat plate.

Quality Control and Inspection

Quality control for embossed sheets involves rigorous checks for pattern depth consistency, surface defect detection, and flatness testing to ensure the product meets international standards.

In a B2B environment, consistency is everything. If a contractor is installing 100 panels of patterned embossed stainless steel sheet in a hallway, every panel must match perfectly. Inspectors use high-precision depth gauges to measure the peaks and valleys of the pattern at multiple points across the width and length of the sheet. Any variation greater than a few microns can result in a visible "seam" or color shift when the panels are installed side-by-side.

Flatness is the second major concern. The embossing process introduces significant internal stresses into the metal. To counteract this, sheets often pass through a "leveling" machine after embossing. This machine uses a series of small rollers to flex the metal back into a perfectly flat plane without crushing the newly created texture. A "gap test" is performed on a precision table to ensure the sheet does not bow or twist.

Finally, the surface is inspected under high-intensity lighting to check for "pinholes," scratches, or PVD color inconsistencies. Since these sheets are often the "face" of a building or product, even the smallest visual blemish is unacceptable. Protective PE (Polyethylene) film is applied immediately after inspection to ensure the surface remains pristine during shipping, cutting, and installation.

Applications in Modern Industry

Embossed stainless steel sheets are utilized across a diverse range of industries, including architecture, food processing, and transportation, due to their unique blend of form and function.

In architecture, these sheets are the gold standard for elevator doors and cabs. The texture prevents the "hall of mirrors" effect of polished steel while hiding the inevitable scratches from luggage and carts. Beyond elevators, large-scale building facades use embossed patterns to manage light reflection. By breaking up the flat surface, the metal diffuses sunlight, reducing glare for surrounding buildings and pedestrians while creating a dynamic, shimmering effect.

In the food and medical industries, the "linen" or "diamond" patterns are often used on work surfaces and machinery housing. The raised texture reduces the surface area in contact with containers, making it easier to slide heavy items across a counter. Furthermore, the increased surface area can actually assist in heat dissipation in certain industrial cooling applications.

1. Architecture & Design: Wall cladding, ceiling panels, and decorative columns in luxury hotels and malls.

2. Public Infrastructure: High-traffic areas like subway stations and airport terminals where durability is key.

3. Kitchen & Appliances: Refrigerator panels and backsplashes that require a "smudge-proof" look.

4. Marine Industry: Use of 316-grade embossed sheets for ship interiors to resist salt-air corrosion.

The Benefits of Textured Surfaces

Beyond aesthetics, embossing provides significant mechanical advantages, including a higher strength-to-weight ratio, improved scratch concealment, and better acoustic properties.

One of the most overlooked benefits of embossing is structural reinforcement. The "peaks and valleys" created by the rollers act like miniature corrugations. This geometric change increases the Moment of Inertia of the sheet, meaning it is less likely to bend or oil-can under pressure. For B2B buyers, this often means they can specify a slightly thinner gauge of embossed steel to do the job of a thicker flat sheet, leading to significant cost savings on material and shipping.

Maintenance is another area where embossed steel shines. Flat, mirrored, or brushed steel shows every fingerprint, smudge, and hairline scratch. In contrast, the multifaceted surface of an embossed sheet scatters light in many directions, effectively "hiding" minor wear and tear. This extends the replacement cycle of the material, making it a more sustainable and cost-effective choice over the long term.

1. Scratch Resistance: The raised pattern takes the brunt of any impact, protecting the recessed areas.

2. Light Diffusion: Reduces glare in brightly lit environments, enhancing visual comfort.

3. Weight Reduction: Enhanced rigidity allows for thinner gauges without sacrificing strength.

4. Anti-Slip Properties: Certain patterns provide essential grip for flooring and stair treads.
