Embossed Stainless Steel Sheet Vs. Etched Stainless Steel Sheet

In the modern world of industrial design and architecture, the aesthetic and functional versatility of stainless steel is unmatched. Among the various surface treatments available, embossed and etched finishes stand out as two of the most popular choices for enhancing both the durability and the visual appeal of the material. Whether you are looking for a slip-resistant flooring solution or an intricate decorative wall panel, understanding the technical differences between these two processes is essential for making an informed procurement decision.

The primary difference between embossed and etched stainless steel lies in their manufacturing process and resulting texture: embossed stainless steel is produced by mechanically rolling patterns onto the metal surface to create a raised, three-dimensional effect that enhances structural rigidity, whereas etched stainless steel uses chemical acid to eat away specific areas of the surface, creating precise, flat, and highly detailed decorative designs.

This guide will delve deep into the mechanical properties, manufacturing nuances, and diverse applications of both types of sheets. By examining the cost-effectiveness, maintenance requirements, and performance in harsh environments, we aim to provide project managers, architects, and industrial buyers with the insights needed to select the ideal material for their specific needs.

Table of Contents

Embossed Stainless Steel Sheets

Embossed stainless steel sheet is a type of patterned metal produced through a mechanical process where the sheet is passed through powerful rollers to create a raised or sunken design on the surface.

The production of an Embossed Stainless Steel Sheet involves a cold-rolling technique. During this process, the stainless steel coil or sheet is fed through a set of engraving rollers that exert immense pressure. This pressure deforms the metal, forcing it to take the shape of the patterns etched onto the rollers. Unlike other surface treatments that add or remove material, embossing redistributes the existing metal, which often results in a "work-hardening" effect. This makes the final product not only more visually interesting but also physically stronger and more resistant to impact than a standard flat sheet.

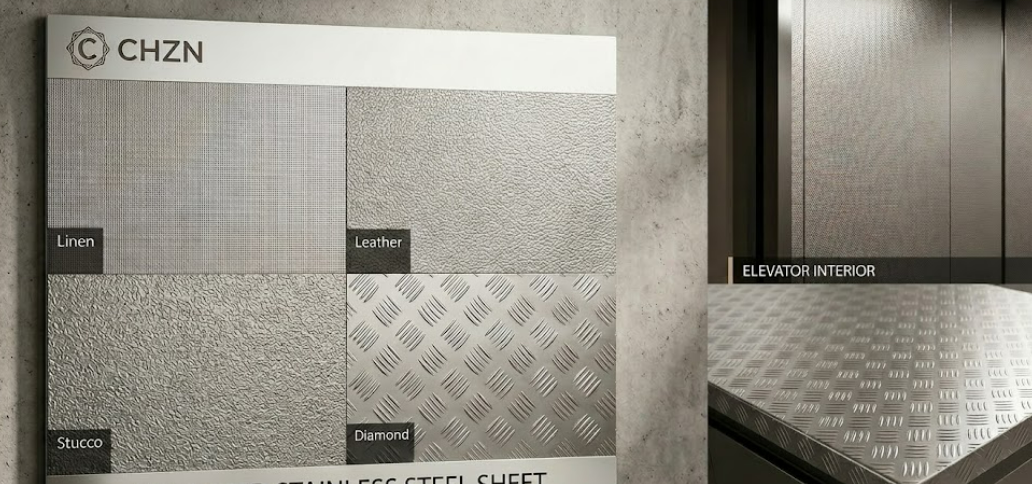

From a technical perspective, embossing creates a three-dimensional texture that can be felt by hand. Common patterns include linen, leather, wood grain, and various geometric shapes like diamonds or teardrops. Because the pattern is physically pressed into the metal, it is permanent and cannot be worn away by friction or heavy use. This makes the Embossed Stainless Steel Sheet an exceptional choice for environments where the material will be subjected to constant contact or abrasive forces.

Furthermore, the raised texture serves a functional purpose beyond aesthetics. By breaking up the flat surface of the metal, embossing helps to hide scratches, fingerprints, and minor dents that would be glaringly obvious on a polished or brushed surface. For businesses looking for high-quality architectural solutions, incorporating a durable embossed stainless steel sheet into the design ensures a long-lasting, low-maintenance finish that retains its professional appearance even after years of heavy service.

Advantages of Embossed Surfaces

1. Increased Rigidity: The mechanical deformation increases the strength-to-weight ratio of the sheet.

2. Scratch Masking: The complex patterns make minor surface damage nearly invisible to the naked eye.

3. Glare Reduction: The uneven surface diffuses light, preventing harsh reflections in brightly lit industrial spaces.

Applications of Embossed Stainless Steel Sheets

The applications of embossed stainless steel sheets primarily focus on heavy-duty industrial environments and high-traffic public spaces where durability and safety are the top priorities.

In the industrial sector, the most common use for an Embossed Stainless Steel Sheet is in flooring and walkways. The raised patterns, such as the classic "tread plate" or "diamond" design, provide essential slip resistance. This is critical in food processing plants, chemical facilities, and marine environments where liquids or oils are often present on the floor. The mechanical grip provided by the embossed texture significantly reduces the risk of workplace accidents, making it a standard safety material in many engineering specifications.

Architecturally, these sheets are frequently used for elevator interiors and escalator side panels. These are areas prone to heavy use and potential vandalism. The textured surface of the Embossed Stainless Steel Sheet prevents the "oil canning" effect (visible waviness in flat metal) and resists the unsightly scuffs caused by luggage, carts, or heavy foot traffic. By selecting a high-performance embossed stainless steel sheet, designers can achieve a modern, industrial aesthetic that requires minimal cleaning compared to mirror-finished alternatives.

Another significant application is in the manufacturing of commercial appliances and cold storage units. The linen or leather patterns are often found on the doors of industrial refrigerators, ovens, and dishwashers. These patterns not only add a touch of sophistication but also protect the appliance from the daily wear and tear of a busy commercial kitchen. The ability of the material to withstand frequent sanitization without losing its texture makes it ideal for the medical and catering industries.

Common Usage Scenarios

1. Transportation: Used for the flooring of buses, trains, and ships to ensure passenger safety.

2. Machinery Housing: Provides a robust and vibration-resistant shell for heavy equipment.

3. Public Infrastructure: Installed in subway stations and airports as protective wall cladding.

Etched Stainless Steel Sheets

Etched stainless steel sheet is a decorative material created by using chemical acids or "etchants" to selectively remove the top layer of the metal, resulting in highly detailed and precise patterns.

The process of creating an etched sheet is significantly more complex and artistic than mechanical embossing. It begins with the application of a "resist" or a protective mask on the surface of the stainless steel. This mask is often applied using silk-screen printing or photo-resist technology, which allows for extremely intricate designs, including fine lines, logos, and even photographic images. The sheet is then exposed to an acid bath. The acid eats away the exposed areas of the metal while the masked areas remain untouched, creating a shallow, flat-bottomed indentation.

One of the defining characteristics of etched stainless steel is the precision of the design. Unlike embossing, which is limited by the physical depth the rollers can achieve, etching can create incredibly sharp edges and varying depths of "frosting" or matte effects on a polished background. After the etching process is complete, the recessed areas can be left as-is, or they can be filled with colored paints or PVD (Physical Vapor Deposition) coatings to create a multi-colored, luxurious appearance.

Because the etching process removes material rather than deforming it, the structural integrity of the sheet remains largely unchanged, and the reverse side of the sheet remains perfectly flat. This makes it easier to bond the sheet to substrates like wood or composite panels. For high-end interior projects, using an artistically etched stainless steel sheet allows for a level of customization and detail that mechanical rolling simply cannot match.

Comparison Table: Embossed vs. Etched

Applications of Etched Stainless Steel Sheets

Etched stainless steel sheets are primarily utilized in luxury architectural decoration, high-end signage, and bespoke interior design where visual detail is paramount.

In the world of luxury hospitality and retail, etched panels are a staple for decorative wall cladding and room dividers. Architects often use custom-etched patterns to incorporate brand logos or traditional motifs directly into the building's metalwork. The contrast between the etched (matte) areas and the original (mirror or brushed) surface creates a sophisticated play of light that enhances the ambiance of hotel lobbies, high-end boutiques, and corporate boardrooms.

Another major application is in the production of control panels and nameplates for high-precision equipment. Because the etching process can produce tiny, legible text and complex diagrams that are permanently recessed into the metal, it is the preferred method for creating durable instruction plates in the aerospace and maritime industries. Unlike printed labels, etched information cannot be scratched off or dissolved by chemicals, ensuring that safety information remains visible for the lifetime of the machine.

Elevator doors and cabin interiors also frequently feature etched designs. Unlike the functional embossing used in service elevators, passenger elevators in premium buildings often use etching to create ornate patterns that mimic traditional wallpapers or abstract art. By choosing a custom-designed etched stainless steel sheet, property developers can significantly increase the perceived value of their interior spaces while maintaining the fire-resistant and hygienic benefits of stainless steel.

Key Application Areas

1. Signage and Branding: Creating permanent, weather-resistant outdoor signs and logos.

2. Luxury Furniture: Inlays for tables, cabinets, and high-end cabinetry.

3. Ceiling Panels: Decorative overhead installations in malls and exhibition centers.

Identify Embossed and Etched Stainless Steel Sheets

To identify whether a stainless steel sheet is embossed or etched, one should examine the depth of the pattern, the consistency of the back of the sheet, and the sharpness of the design edges.

The quickest way to identify an Embossed Stainless Steel Sheet is by looking at the back of the material. Since embossing involves a set of male and female rollers pressing the metal, the pattern is usually visible on both sides—where it is raised on the front, it will be indented on the back. Furthermore, the edges of embossed patterns are generally smoother and more rounded due to the physical limits of the metal's ductility during the rolling process. If you run your finger over the surface and feel a significant, consistent "bump" that is mirrored on the reverse, it is undoubtedly an embossed product.

In contrast, an etched sheet will have a perfectly flat and smooth back. The pattern on the front is created by removing microns of metal, so it does not affect the overall flatness of the sheet. The edges of an etched design are also much sharper and more defined. If you see a design that features very fine lines (less than 1mm wide) or complex shading, it is almost certainly the result of chemical etching. Etched sheets also often feature a "dual-tone" look, where the etched area has a different reflectivity or color than the rest of the sheet.

Finally, consider the scale of the pattern. Embossed patterns are typically repetitive and "endless," as they are produced by a continuous roller. Etched patterns can be "framed" or unique to a single sheet, allowing for designs that do not repeat or that have a specific border. Understanding these physical cues is vital for quality control and ensuring that the material delivered matches the technical specifications of your project.

Identification Checklist

1. Check the Back: Embossed is "bumpy" on the back; Etched is flat.

2. Edge Sharpness: Etched designs have sharp, "cut" edges; Embossed designs are rounded.

3. Pattern Complexity: High-detail logos or images indicate etching; repetitive textures indicate embossing.
