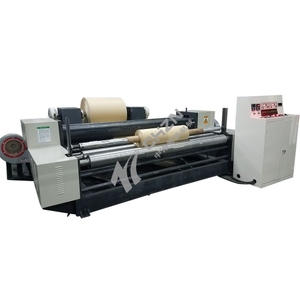

Electric Kraft Paper Creasing And Perforating Machine

Availability:
Quantity:
Inquire Add to Basket

Kraft PaperKraft PaperKraft Paper

Feature:

1) Passive coiling

2) Adopts computer controller to calculate meters.


Technical Specification

Krafer Paper Width

Max. 2200mm

Paper Roll Diameter

1100-1200mm

Decoiling Diameter

ф1500mm

Coiling Diameter

ф800mm

Mechanical Speed

100m/min.

Tension Control

By bilateral 40KG magnetic powder controller

Mechanical Wall Thicken

10cm

Thickened roller diameter

ф125mm

Active frequency control

11KW

Perforating Machine Weight

6500kgs

Dimension

4350x3500x2000mm

Technological Process:

Decoiler → feeding guide → perforating forming → discharging guide → coiling.
