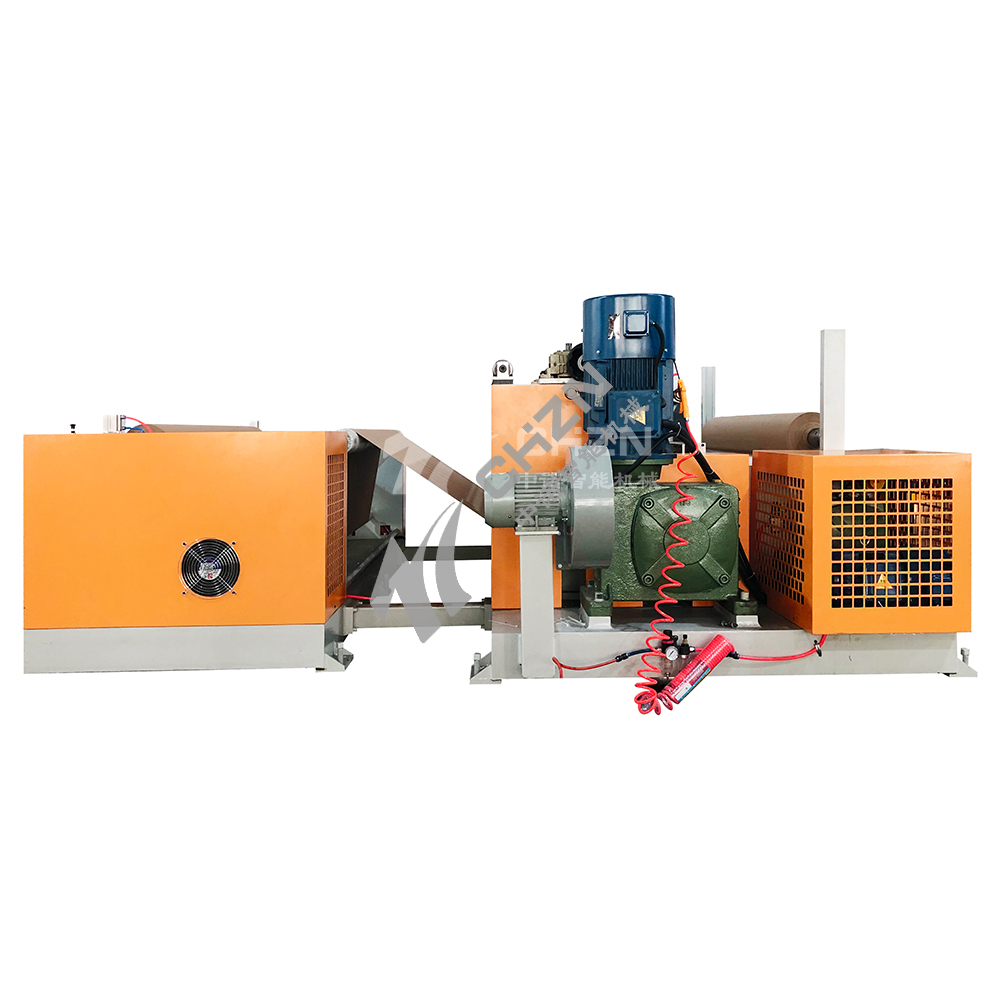

1700MM Kraft Paper Punching Machine

Availability:
Quantity:
Inquire Add to Basket

  • chzn

Model:HK-1700 unwinding is unwinding with a shaft, the shaft is on the memorial arch

Punching machine in the form of vertical two - roll punching machine

Effective size of worktable: 1700MM

Single needle roller diameter: 240MM

Capacity: 70-120m/min

Punch adjusting: reducer

Transmission device adopts frequency conversion speed regulation

Punching form: up and down roll pressure

Weight: 2500KG(based on physical weight)

Cycloid pin gear reducer: XWD7-11-7.5

Transverse hole center distance: 60mm

Circumference feed direction hole center distance: 50mm

Uncoiling bearing capacity (with shaft) :1500Kg (3 inch air expansion shaft)

Uncoiling diameter: 1200mm

Coil rack: steel structure

Motor active: winding (ground roll winding)

Load bearing: 200Kg

The winding diameter : 300mm

Machine dimensions: 2000MM*1900MM*1300MM (based on physical objects)
