Normal FAQs

  • Q Are you a factory or a trading company?

    We are factory with foreign trade department.
  • Q When your company was founded?

    Our company was founded in 2014.
  • Q Do you have any certificates?

    We have passed IS09001 and IS014000.
  • Q What are the maintenance skills of embossing roller?

    It is necessary to clean the embossing roller to protect the pattern, such as removing rust by acid pickling and removing oil stains by organic matter. And you can use sand blasting treatment to increase surface roughness of the embossing roller, it can improve the binding force between the surface pattern and the embossing roller. Finally, the embossing roller should be kept dry to prevent rusting again.


Share to:

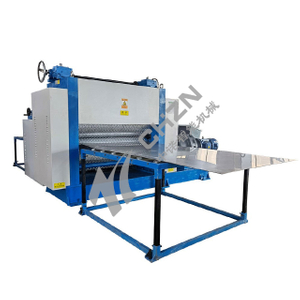

HK-W1600 Type Cold Rolling Sheet Knurling Machine


Technical Specification

Embossing Roller Size

ф500mmx1600mm width

Embossing Roller Pattern

willow leaf pattern and compass pattern.

(can be customized)

Pressed plate

≤3.5mm thick x 1500mm width

(Steel plate, stainless steel plate or cold rolling sheet)

Embossing Roller Material

Alloy steel solid forging.

Embossing Mode

Upper and lower concave-convex rollers opposing pressure.

Pressure Adjustment

Turbine worm reducer pressurize

Transmission Mode

Universal joint transmission

Voltage and Power

380V/50HZ, 3P; 15KW (speed 0-15m/min.)

Technological Process:

Feeding → feeding guide → embossing (knurling) forming → plate leveling → finished products discharging
