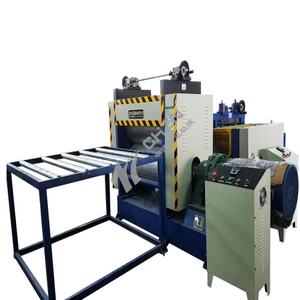

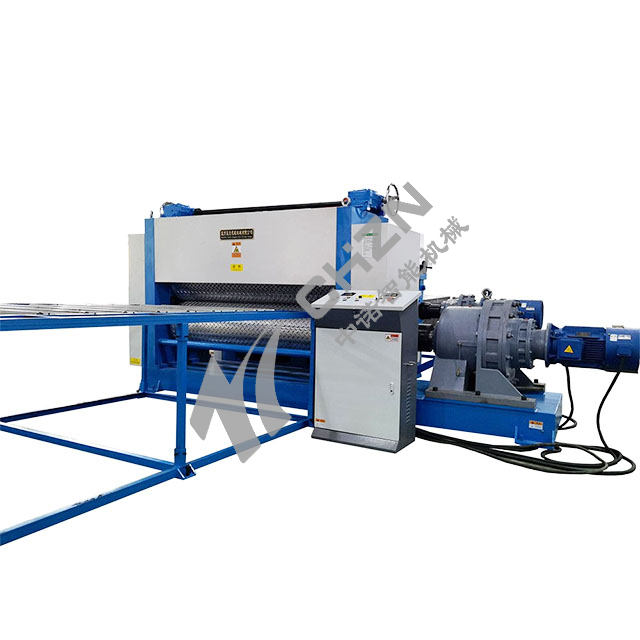

HK-S Types Anti-Slip Plate Embossing Machine

Availability:
Quantity:

Technical Specification

Embossing roller size

Φ350-450mm; width 1000-1600mm

Embossing roller pattern

Willow leaf pattern, lentil flower, compass and other patterns (patterns can be customized)

Steel plate size

Thickness≤ 3.0mm

Max. width 1500mm (steel plate)

Embossing roller material

Alloy steel solid forging

Embossing mode

Upper and lower concave-convex rollers Opposing pressure

Pressure adjustment

Screw pressurize

Transmission mode

Gear transmission

Voltage and Power

380V/50HZ 3P;

11.0KW (wire speed 0-10m/min.)

Technological Process:

Feeding → Feed guiding → embossing (knurling) forming → plate leveling → finished products discharging.
