  • Q What are the maintenance skills of embossing roller?

    It is necessary to clean the embossing roller to protect the pattern, such as removing rust by acid pickling and removing oil stains by organic matter. And you can use sand blasting treatment to increase surface roughness of the embossing roller, it can improve the binding force between the surface pattern and the embossing roller. Finally, the embossing roller should be kept dry to prevent rusting again.


Share to:

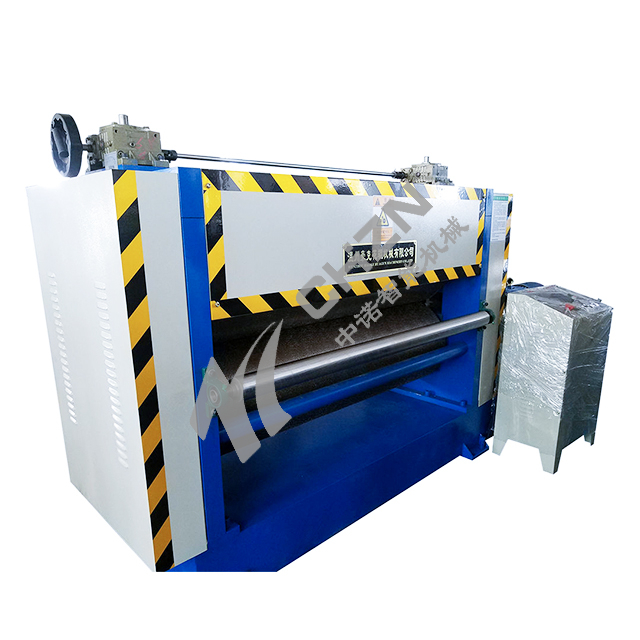

Galvanized Roll Embossing Machine for Production Line


Technical Specification

Embossing Roller Size

ф300-500mmx 600-1600mm width

Embossing Roller Pattern

Diamond, orange pattern, millet grain and other patterns (can be customized)

Pressed plate

≤2mm thick x 1500mm width

(Steel roll, stainless steel roll, cold rolling roll, galvanized roll or Aluminum roll etc..)

Embossing Roller Material

Alloy steel solid forging.

Embossing Mode

Upper and lower concave-convex rollers opposing pressure.

Pressure Adjustment

Turbine worm reducer pressurize

Voltage and Power

380V/50HZ, 3P; 5.5-30KW (speed 0-15m/min.)

Technological Process:

Feeding → feeding guide → embossing (knurling) forming → plate leveling → finished products discharging
