  • Q Are you a factory or a trading company?

    A
    We are factory with foreign trade department.
  • Q When your company was founded?

    A
    Our company was founded in 2014.
  • Q Do you have any certificates?

    A
    We have passed IS09001 and IS014000.
  • Q What are the maintenance skills of embossing roller?

    A
    It is necessary to clean the embossing roller to protect the pattern, such as removing rust by acid pickling and removing oil stains by organic matter. And you can use sand blasting treatment to increase surface roughness of the embossing roller, it can improve the binding force between the surface pattern and the embossing roller. Finally, the embossing roller should be kept dry to prevent rusting again.

loading

Share to:

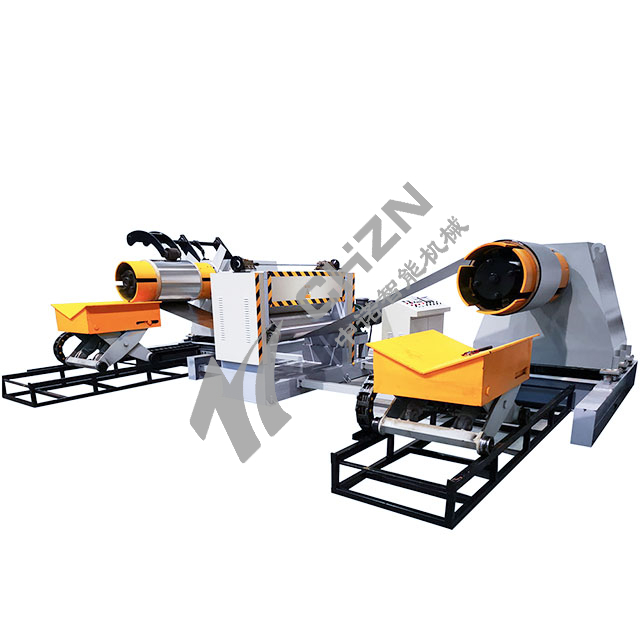

Galvanized Roll Aluminum Foil Roll Embossing Equipment Production Line

Availability:
Quantity:

Metal plate

Feature:

1) Coiling and decoiling Expansion and contraction are controlled by Hydraulic cylinder.

2) The decoiler machine is equipped with a controllable tension system, which is suitable for embossing various sizes of rolls.

3) Embossing and coiling machine adopts Siemens Motor.

4) The decoiler machine is equipped with a controllable tension system, which is suitable for embossing various sizes of rolls.


Technical Specification

Decoiler Machine

5 Tons Cantilevered (Loading hydraulic trolley is optional)

Coiling and Decoiling Loading Weight

Max.5000kgs

Coiling and Decoiling Diameter

Max. 1500mm

Embossing machine pressure type

Reducer pressurize

Embossing Patterns

Can be customized by customers’ requirements.

Production Line Speed

Frequency control 0-30m/min

Applicable roll material and size

Color steel roll ≤0.6mm thick X 1250-1500mm width

Aluminum roll ≤1.2mm thick x 1250-1500mm width

Galvanized roll ≤0.6mm thick x 1250-1500mm width

Stainless steel roll ≤0.3mm thick x 1250-1500mm width

Technological Process:

Decoiler → feeding guide → embossing (knurling) forming → discharging guide → coiling.
