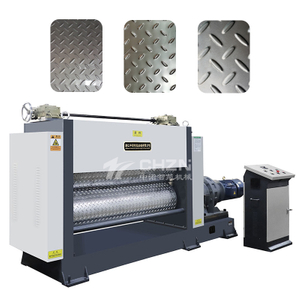

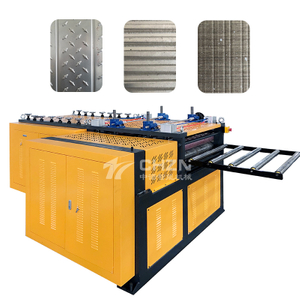

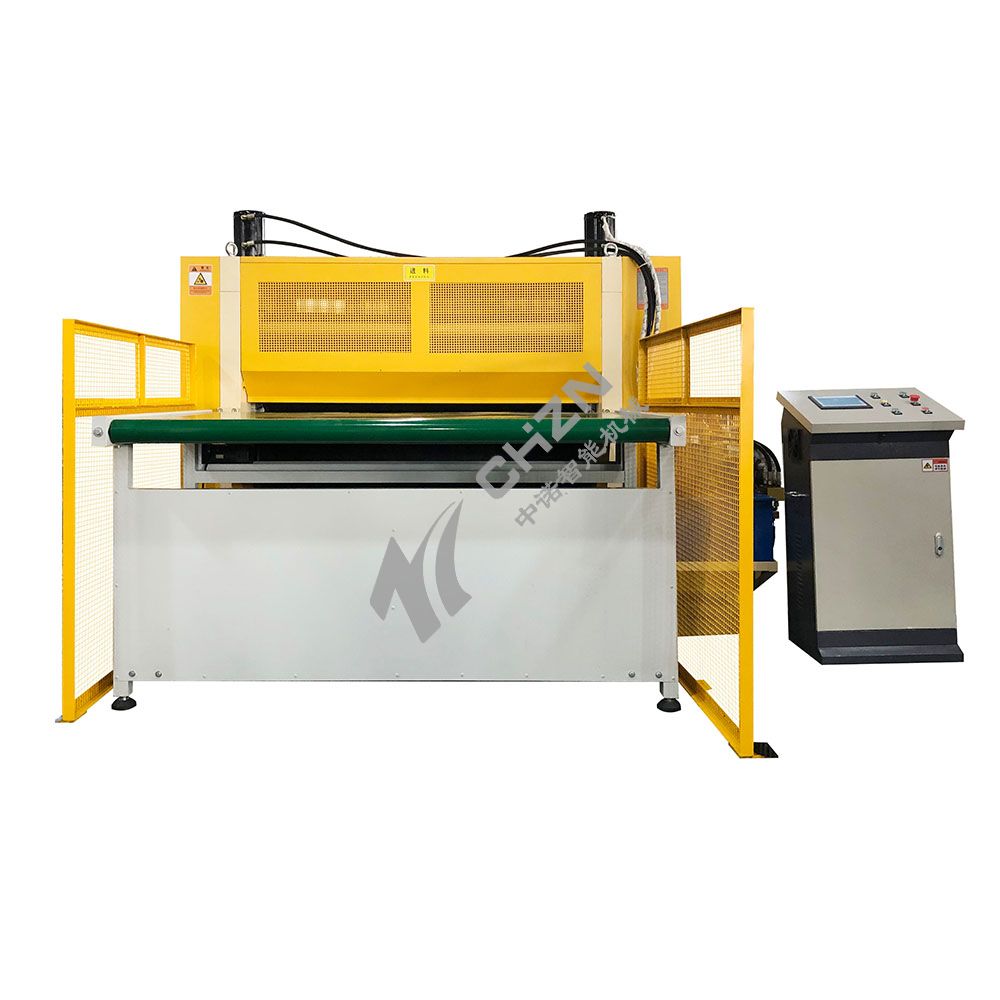

Embossing machine:
1. Embossing machine form: vertical two roller double-sided embossing machine:
2. Product thickness range: 0.2-1.0mm aluminum plate (1050-0)
3. Pattern: convex hull
4. Embossing depth: 2.5 + / - 0.1 mm
5. Speed of the whole production line: 5-50m / min (adjustable)
6. Specification of embossing roll: ø 520 * 1650mm, width of pressed finished product 800-1600mm (net size 520)
7. Roll material: 9Cr2Mo alloy steel
8. Roll structure: integral forging;
9. Roll heat treatment: medium frequency quenching of roll body;
10. Roll hardness: hrc60-62
11. Roller pattern: CNC engraving according to drawing requirements
12. Embossing machine frame: steel plate composite structure
13. Rolling mill drive: variable frequency speed regulation
14. Pressurization mode: hydraulic pressure regulation
15. Center height (from the ground to two rollers): 1050mm
16. Electric control part; Independent control cabinet
17. Between rolls: gap adjustable
18. Knurled roller: removable roller replacement.
19. Cycloidal pin wheel reducer: xwd8-29-15
20. Variable frequency motor power: 15kw / 380V, 50Hz, 3phases380v3 phase
21. Inverter brand: Delta
22. Motor brand: Siemens Beide
23. PLC brand: Siemens
24. Three phase asynchronous motor: Nanjing shunbai Motor Co., Ltd
25. Bearing: NSK
26. Quantity: 1 set
Color requirements are as follows:
1) equipment body light beige ral1015
2) safety fence, frame and safety cover (yellow ral 1003)
3) safety fence: Black ral9004; 4) electric cabinet (electric box): gray ral7032
(5) moving parts (yellow and black): ral1003 / 9004
6 exhaust system ral6062
Overall dimension of the whole set: 4200mm * 1840mm * 2080mm (based on the actual weight)
Total weight of the whole set: 13500kg (based on the actual weight)
